PCI to PMC (PCI Mezzanine Card) Extender

PCI to PMC (PCI Mezzanine Card)

Overview:

  • Easy access to UUT in any computer case
  • Integrated Universal ByteBlaster, I2C and SPI
  • Supports ALTERA, XILINX, LATTICE (for FPGA/CPLD programming).
  • Supports hot-swap operation

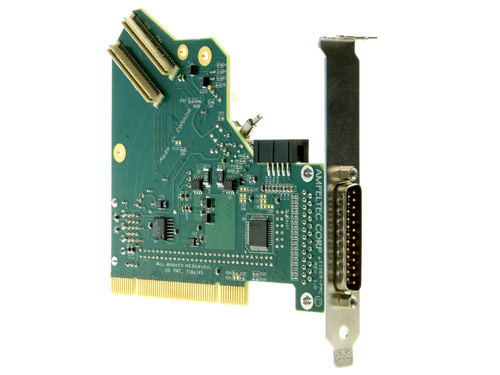

PCI to PMC Extender board (front)

PCI to PMC Extender board (reverse)

The PCI-to-PMC Extender was designed to convert any standard PCI slot of a PC to a PMC (PCI Mezzanine Card) slot. It allows a standard personal computer to be used as a testing/development platform for PMC interface cards. The adapter allows easy access to the PCI (PMC) logic signals, overcurrent protection and hot-swap capability.

All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA

Specifications:

  • Meets PCI Specification 3.0 and PMC bus connector specification IEEE 1386.1-2001
  • Overcurrent protection of all power levels (+3.3V, +5V, +12V, -12V)
  • Supports +5V and +3.3V signaling environment
  • Supports hot-swap operation
  • Built-in Universal ByteBlaster for loading/programming FPGA/CPLD from all major vendors
    (placed on the UUT)
  • IEEE-1149.1 JTAG Boundary Scan port is available to support UUT testing/programming. Easy access to the PCI (PMC) signals via header or Logic Analyzer high-density connectors
  • Patented mechanical design allows easy access to the connectors on the UUT in any computer cases (US Patent 7,186,145)
  • Supports 2U and standard computer cases

Standard Package Includes:

  • PCI to PMC Extender with two brackets (regular and low profile)
  • Hot-swap software under Windows/Linux/FreeBSD OS

Part Number:

  • SKU-013-01           PCI to PMC (PCI Mezzanine board) Extender



Options:

  • SKU-013-03           Mini-extender supporting plug-in high density logic analyzer adapters                                                               (Agilent E5339A, E5346A, E5351A)

All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
