32-bit PCI Bus Active Extender
32-bit PCI Bus Active Extender
Overview:
- Easy access to UUT in any computer case
- Integrated Universal ByteBlaster
- Supports ALTERA, XILINX, LATTICE for FPGA/CPLD programming
- Supports hot-swap operation
32-bit PCI Extender

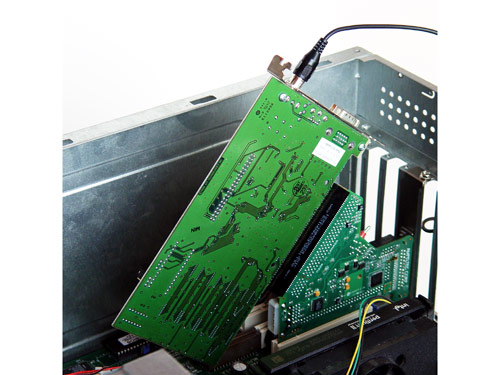

32-bit PCI Extender with test PCI board
32-bit PCI Extender with right angle PCI connector
Mini-extender supporting plug-in high density logic analyzer adapters (Straight and Right Angel)
PCI Adapter (for supporting plug-in 3.3V PCI boards)
The 32-bit PCI Extender was designed to support the development, debugging and verification of 32-bit PCI boards. The extender provides a complete PCI debugging platform that allows easy access to logic signals; it has over-current protection, and supports hot-swap operation.
All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
Specifications:
- The Extender has a straight PCI test connector and a right angle PCI test connector (optional)
- Supports 5V and 3.3V signaling environments
- Supports hot-swap operation
- Supports external power supply for the generation of all PCI voltage levels for the PCI test connector (+5V, +12V, -12V, +3.3V and VIO (5V or 3.3V))
- Power monitoring and current limiting for PCI test connector
- FPGA byte blaster functionality for different types of FPGA (like Xilinx, Altera, Atmel, Lattice)
- Extender is equipped with a test point header array with all PCI bus signals for logic analyzer hookup. It supports high-density logic analyzer adapters (Agilent E5339A, E5346A, E5351A) for fast plug-in
- Patented mechanical design allows easy access to the connector on the UUT in any computer cases (US Patent 7,186,145)
- Supports 2U and standard computer cases
Downloads:
Standard Package Includes:
- PCI Extender with two brackets (regular and low profile)
- Hot-swap software under Windows®/Linux/FreeBSD OS
Part Number:
- SKU-001-01 32-bit PCI Bus Extender
- SKU-001-02 32-bit PCI Bus Extender with right angle PCI connector
Options:
- SKU-001-03 Mini-extender supporting plug-in high density logic analyzer adapters (Agilent E5339A, E5346A, E5351A) – Straight version
- SKU-001-04 Mini-extender supporting plug-in high density logic analyzer adapters (Agilent E5339A, E5346A, E5351A) – Right Angel version
- SKU-001-05 PCI adapter (for supporting plug-in 3.3V PCI boards)
All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
