Squid Carrier Board™ Family
PCI Express Gen 3 Carrier Board for 2 M.2 SSD modules
PCI Express Gen 3 Carrier Board for
Overview:
- No motherboard restrictions, operates in any motherboard
- Doesn’t require PCI Express bifurcation
- Easy “Plug & Play” installation, no Drivers needed
- Up to 2 any type M.2 PCI express SSD modules support (M-key)
- Standard one-slot-wide half-height half-length (2U) PCI Express board (US Pat. 9,996,494)
- x4 PCI express Gen 3 connection to each M.2 circuit
- Compliant with PCIe Specification 3.0 and M.2 Specification 1.1
- Supports x8 or x4 Gen 3 PCI express upstream connection to motherboard.
- RoHS compliant
PCI Express Carrier board was designed to expand modern motherboards that have PCI Express interface. It allows connection of up to 2 M.2 PCI Express SSD modules.
PCI Express Carrier board is one-slot-wide, half-height and it compliant with PCI Express Specification 3.0 and M.2 Specification 1.1.
PCI Express Carrier Board supports x4 PCI Express Gen 3 connection to each M.2 circuit. Carrier Board is located in the middle of the PCI Express slot and can be connected to motherboard PCI Express connector via exchangeable x8 or x4 PCI Express upstream Adapter (US Pat. 9,996,494).

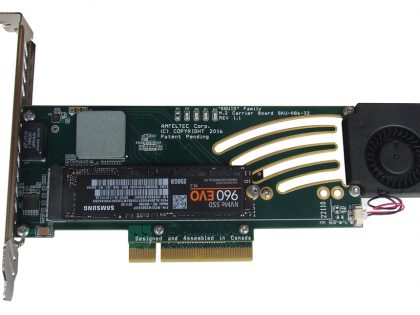

PCI Express Gen 3 Carrier Board for up to 2 M.2 PCIe SSD modules (bottom)

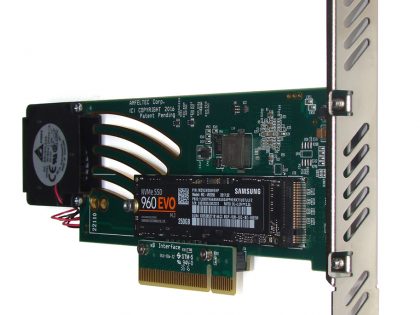

PCI Express Gen 3 Carrier Board for up to 2 M.2 PCIe SSD modules (top)
PCI Express Gen 3 Carrier Board for up to 2 M.2 PCIe SSD modules
PCI Express Gen 3 Carrier Board for up to 2 M.2 PCIe SSD modules
All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
Specifications:
- Easy Plug-and-Play installation
- No motherboard restrictions, operates in any motherboard, doesn’t require PCI Express bifurcation
- Compliant with PCI Express Specification 3.0 and M.2 Specification 1.1
- Allows to connect up to 2 M.2 PCI Express SSD modules
- Occupies one standard PCI Express slot, half-height (2U) board (US Pat. 9,996,494)
- Supports x8 or x4 PCI Express Gen 3 upstream connection via exchangeable PCI Express adapters
- LEDs for displaying downstream and upstream PCI Express link status
- RoHS compliant
Downloads:
Downloads:
Standard Package Includes:
- PCI Express Gen 3 Carrier Board for 2 M.2 SSD module (M-key)
- x8 or x4 PCI Express upstream Adapter
- Full or half-height PCIe bracket
- Set of 2 heat spreaders for each of M.2 SSD modules
Part Number:
- SKU-086-32 Squid PCIe Carrier Board for 2 M.2 SSD modules (M.2 key) (full or half-height bracket; x8 or x4 PCI Express Adapter)
All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
FEATURED PRODUCTS:
PCI Express Gen 2 Carrier Board for 4 M.2 SSD modules
Squid Carrier Board™ Family
1U PCI Express Gen 3 Carrier Board for M.2 SSD module
Squid Carrier Board™ Family

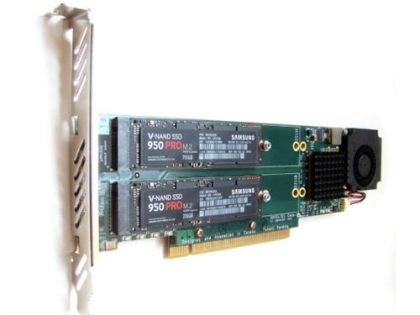

PCI Express Gen 3 Carrier Board for 4 M.2 SSD modules
