Overview:

MiniPCI Express 4-way RF Combiner. It allows combining signals from 4 antennas to a single antenna. The Adapter is a passive device and can be installed in any full size MiniPCI express circuit. This Adapter was designed for our Squid PCI express Carrier boards.

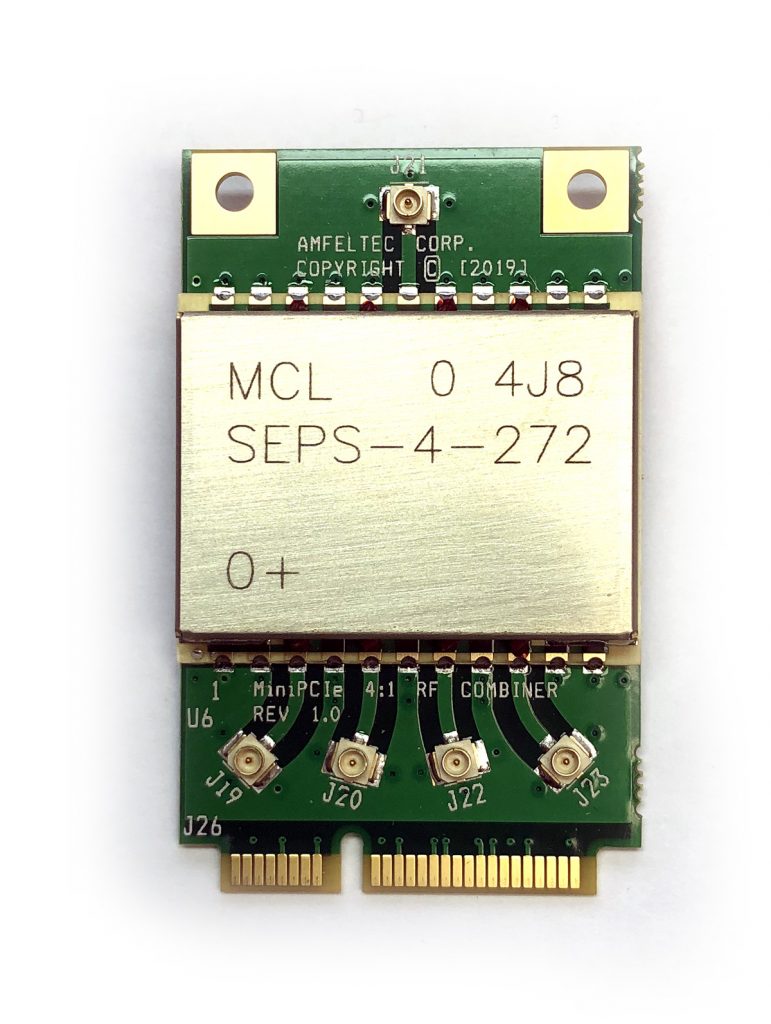

MiniPCI Express 4-way RF Combiner

MiniPCI Express 4-way RF Combiner

Squid Carrier board with Combiner

Squid Carrier board with Combiner

Specifications:

Part Number:

  • SKU-089-13      MiniPCI Express 4-way RF combiner.
    ______________(based on 4-way passive RF combiner SEPS-4-272+ (default) or
    ______________SEPS-4-222+ from Mini-Circuits®)

All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
