Flexible MiniPCI to PCI Adapter

Overview:

  • Splits and converts your MiniPCI bus into two 32-bit PCI buses
    (located on the adapter)
  • Flexible connection between MiniPCI host board and PCI adapter
  • Secure placement of the PCI adapter inside an embedded chassis
MiniPCI Express to PCI Adapter

Flexible MiniPCI to PCI Adapter

MiniPCI host board

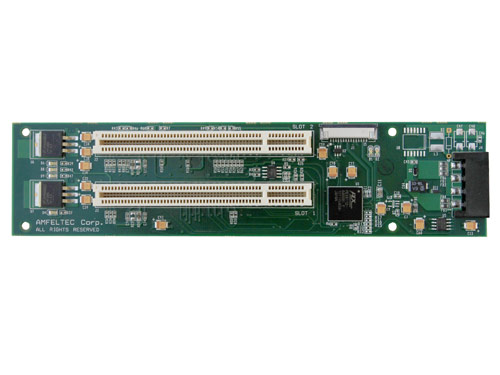

PCI adapter board

The Flexible MiniPCI to PCI Bus Adapter (Adapter) was designed to expand a modern motherboard (ATX, mini ATX, etc.) with a limited number of PCI connectors. The Adapter allows you to connect up to two 32-bit PCI add-in boards to the motherboard’s MiniPCI connector.

The Adapter includes a PCI adapter, MiniPCI host board and a PCI Express flat cable.

The PCI adapter has two 32-bit PCI slots for plugging in two 32-bit PCI add-in boards. The MiniPCI host board connects to the motherboard using the standard 124-pin MiniPCI connector. The PCI Express flat cable (12 inches) is used for connecting the host board with the PCI adapter, and it provides a flexible connection between 32-bit PCI add-in boards and the motherboard.

The power (12V, 5V, 3.3V, -12V) for each PCI add-in board is supplied via a 32-bit female PCI connector. The PCI adapter has a standard 4-pin “hard drive” power connector for receiving power (12V and 5V) from a standard ATX power supply or any other external power source.

The 2-slot PCI adapter has 4 four mounting holes for its mechanical fixation inside the computer chassis (embedded computer).

Specifications:

  • Easy Plug and Play installation
  • Compliant with PCI and MiniPCI specifications
  • Allows MiniPCI slot to be expanded to 2 32-bit PCI slots
  • LED for displaying link status between MiniPCI host board and PCI adapter
  • LEDs for displaying power status on the PCI adapter
  • RoHS compliant

Downloads:

Product Manual

Standard Package Includes:

  • MiniPCI host board
  • PCI Express flat cable
  • 2 32-bit slot PCI adapter

Part Number:

  • SKU-036-01          Flexible MiniPCI to PCI Bus Adapter (supports 12V/3.3V/5V PCI power)
  • SKU-036-02         Flexible MiniPCI to PCI Bus Adapter (supports 12V/3.3V/5V/-12V PCI power)

All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
