PCI/PCI Express Expansion Backplane
PCI / PCI Express Expansion Backplane
Overview:
- Easy “Plug & Play” installation, no Drivers needed
- Compatible for PC or Mac computers
- Connects to the Host computer via standard CAT6 cable and x1 PCI Express, or MiniPCIe, or ExpressCard® Host board
- Four 32-bit PCI slots 33/66 MHz, and two x16 PCI Express slots
(one lane PCI express interface) - Compliant with PCI Express Specification 3.0
- Connection to Host Computer and to each x16 PCI Express slot at 5 GT/s speed (Gen2)
- Powered from standard ATX Power Supply
- Standard mounting holes based on ATX Specification 2.0. Can be installed inside any general-purpose Computer chassis
- Mechanical stabilization for add-in PCI Express cards to facilitate bracket-less mount (US Patent 7,255,570)
- Dimensions 6 3/4″ x 7 1/2″ (171 mm x 192 mm)
- RoHS compliant
PCI/PCI Express Expansion backplane was designed as a universal solution for Desktop or Laptop host computer expansion.
It allows adding up to 4 PCI and up to 2 PCI Express boards to the host computer. Expansion backplane can be placed inside any general-purpose computer chassis and connects to the host computer via 5ft (or 10ft) CAT6 cable.
PCI/PCI Express Expansion Backplane
PCI Express host board

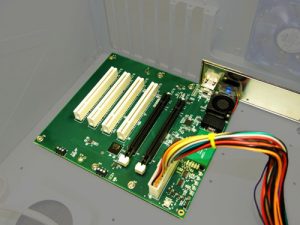

Full-size expansion chassis
Rear view
All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
Specifications:
- Connects to the Host Computer via standard 5 ft. (or 10 ft.) CAT 6 cable
- Four 32-bit PCI slots (33/66 MHz) and two x16 PCI Express slots (with one lane PCI Express interface)
- x1 PCI Express Host board (optional: MiniPCI Express or ExpressCard ® (34) host board)
- Compliant with PCI Specification 3.0
- Connection to Host Computerand to each x16 PCI Express slot at 5 GT/s speed (Gen2)
- Powered from standard ATX Power Supply
- Standard mounting holes based on ATX Specification 2.0. Can be installed inside any general purpose computer chassis
- Mechanical stabilization for add-in PCI Express cards to facilitate bracket-less mount (US Patent 7,255,570)
- Operation Temperature: 0°C to +75°C (optional: -40°C to +85°C)
- Dimensions 6 3/4″ x 7 1/2″ (171 mm x 192 mm)
- RoHS compliant
Downloads:
Downloads:
Standard Package Includes:
- PCI/PCI Express Expansion Backplane
- x1 PCI Express or MiniPCIe or ExpressCard® host board
- 5 ft. CAT6 cable (optionally 10 ft. cable)
- 5 ft. control flat cable (optionally 10 ft. cable)
- ATX I/O panel
- PCI Express filler 2 pcs (optional)
Part Number:
- SKU-075-01 PCI/PCI Express Expansion Backplane (5 ft. cables) – (x1 PCI Express host board)
- SKU-075-02 PCI/PCI Express Expansion Backplane (10 ft. cables) – (x1 PCI Express host board)
- SKU-075-03 PCI/PCI Express Expansion Backplane (5 ft. cables) – (ExpressCard® host board)
- SKU-075-04 PCI/PCI Express Expansion Backplane (10 ft. cables) – (ExpressCard® host board)
- SKU-075-05 PCI/PCI Express Expansion Backplane (5 ft. cables) – (MiniPCI Express host board)
- SKU-075-06 PCI/PCI Express Expansion Backplane (10 ft. cables) – (MiniPCI Express host board)
All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
