Squid Carrier Board™ Family
PCI Express Gen 2 Carrier Board for 4 PCIe M.2 SSD modules
PCI Express Gen 2 Carrier Board for
4 PCIe M.2 SSD modules
Overview:
- No motherboard restrictions, operates in any motherboard
- Doesn’t require PCI Express bifurcation
- Easy “Plug & Play” installation, no Drivers needed
- Up to 4 any type M.2 PCI express SSD modules supports (M-key)
- Standard one-slot-wide half-height (2U) PCI Express board
(US Pat. 9,996,494) - Compliant with PCIe Specification 3.0, M.2 Specification 1.1
- Suppors x16, x8 or x4 PCI express upstream connection to motherboard
- Recommended for Mac Pro desktop computers
- RoHS-compliant
The Squid PCI Express Carrier board for M.2 SSD modules is the second product in the Squid PCI Express Carrier Board™ family. PCI Express Carrier board was designed to expand modern motherboards that have PCI Express interface. It allows connection of up to 4 M.2 PCI Express SSD modules. This product is recommended for use in Mac Pro Desktop computers.
PCI Express Carrier board is one-slot-wide, half-height, half-length and it complies with PCI Express Specification 3.0 and M.2 Specification 1.1.
PCI Express Carrier Board supports x4 PCI Express connection on each M.2 circuit. Carrier Board is located in the middle of the PCI Express slot and can be connected to motherboard PCI Express connector via exchangeable x16, x8 or x4 PCI Express Adapter (US Pat. 9,996,494).
PCI Express Gen 2 Carrier Board
for up to 4 M.2 PCIe SSD modules
PCI Express Gen 2 Carrier Board
for up to 4 M.2 PCIe SSD modules

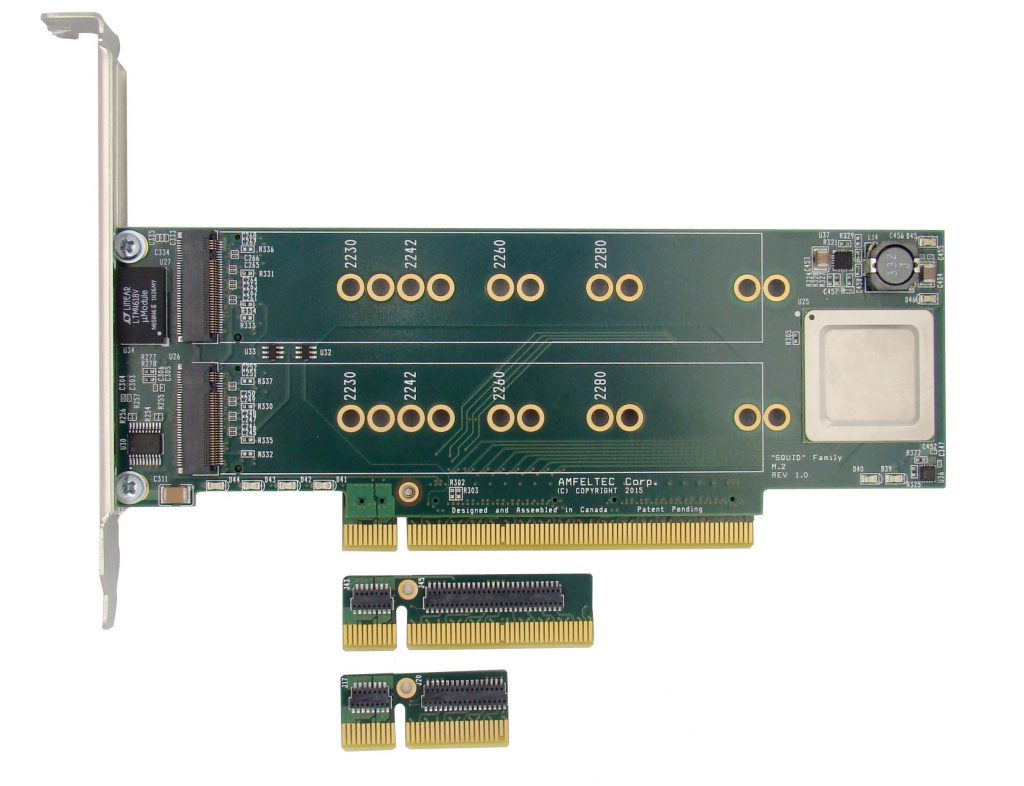

PCIe Gen 2 Carrier board with
x16, x8 and x4 PCIe Adapters (top)
PCIe Gen 2 Carrier board with
x16 PCIe Adapters (bottom)
All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
Specifications:
- Easy Plug-and-Play installation
- No motherboard restrictions, operates in any motherboard
- Doesn’t require PCI Express bifurcation
- Allows to connect up to 4 M.2 PCI express SSD modules
- Compliant with PCIe Specification 3.0, M.2 Specification 1.1
- Occupies one standard PCI Express slot, half-height (2U) PCI Express board (US Pat. 9,996,494)
- Supports x16, x8 or x4 PCI Express upstream connection via exchangeable PCI Express adapters
- LEDs for displaying downstream and upstream PCI Express link status
- RoHS compliant
Downloads:
Standard Package Includes:
- PCIe Carrier board for M.2 SSD modules (M.2 key M)
- x16, x8 or x4 PCI Express Adapter
- Full or half-height PCIe bracket
- Set of 4 heat spreaders for each of M.2 SSD modules
Part Number:
- SKU-086-01 Squid PCI Express Carrier Board for M.2 SSD modules (M.2 key) (full or half-height bracket x16, x8 or x4 PCI Express Adapter)
