32-bit PCI Test Backplane
32-bit PCI Test Backplane
Overview:
- Easy Plug-and-Play installation
- Connects to the host computer via standard CAT6 cable and x1 PCI Express host board
- Compliant with PCI Local bus specification 3.0
- Compliant with PCI Express base specification 2.0
- Four 32-bit PCI slots
- Supports both 5V and 3.3V PCI add-in cards
- Supports hot-swap operation
- Per-slot power monitoring, and over-current protection
- Per-slot access to the PCI bus JTAG Boundary Scan signals to support board level testing/programming
- Test point header array with all PCI bus signals for logic analyzer hookup
- Supports Amfeltec In-Ciruit Programmer/Loader (eLoader™)
- Powered by standard ATX Power Supply
- Mounting holes based on ATX Specification 2.0
- RoHS compliant
PCI Backplane
PCI Backplane
PCI Backplane
PCI adapter (for supporting plug-in 3.3V PCI boards)
Mini-extender supporting plug-in high density logic analyzer adapters (Straight and Right Angel)

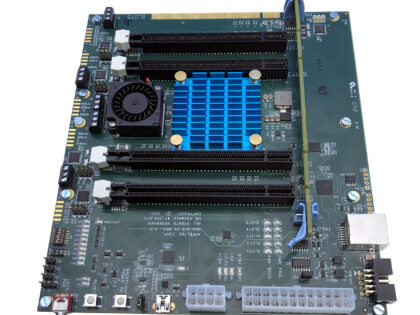

The 32-bit PCI Test Backplane was designed to support production testing/debugging of PCI-based peripheral boards. The backplane expands the x1 PCI Express interface of the host computer into four 32-bit PCI slots via 7 ft CAT6 cable. The PCI backplane is a versatile platform that allows you to test up to 4 PCI boards at the same time, facilitates easy access to logic signals, provides hot-swap compatibility, and per-slot overcurrent protection.
By enabling access to the PCI bus JTAG signals, the PCI Backplane becomes a universal device for support programming/loading FPGA/CPLD during production testing. In addition, all PCI signals can be easily verified by plugging an oscilloscope or logic analyzer into the PCI bus debug connector.
Specifications:
Compliant with:
- PCI Local bus specification 3.0
- PCI Express base specification 2.0
- Four 32-bit PCI slots
- Connects to the host computer via standard CAT6 cable
- Supports plug-in of both 5V and 3.3V PCI add-in boards
- Supports hot-swap operation
- Per-slot access to the PCI bus JTAG Boundary Scan signals to support board level testing/programming
- Test point header array with all PCI bus signals for logic analyzer hookup
- Supports Amfeltec In-Ciruit Programmer/Loader (eLoader™)
- Powered by standard ATX Power Supply
- Mounting holes based on ATX Specification 2.0
- Operation temperature: 0°C to +75°C
- Dimensions (W x D): 200mm x 195mm
- RoHS compliant
Downloads:
Standard Package Includes:
- Milti-interface Test Backplane
- x1 PCI express host board
- 7 ft CAT6 cable
- 7 ft control flat cable
- Hot-plug software under Windows®/Linux/FreeBSD OS
Part Number:
- SKU-014-01 PCI Test Backplane
OPTIONS:
- SKU-001-03 Mini-extender for support of plug-in, high-density logic analyzer adapters (Agilent E5339A, E5346A, E5351A)
- SKU-001-05 PCI adapter (for support of plug-in 3.3V PCI boards)
All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA
